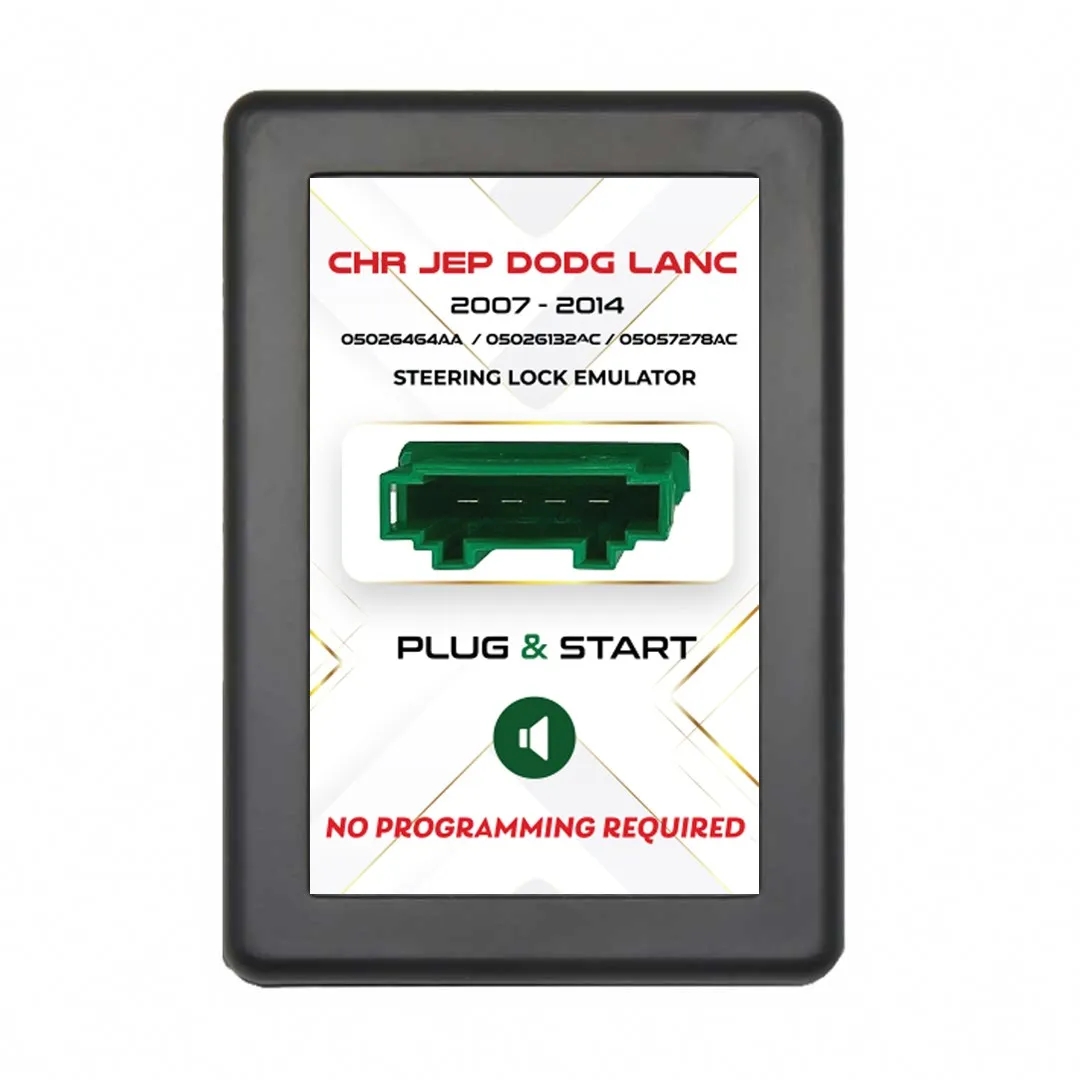

For C-hrysler J-eep D-odge Lancia ESL Electronic Steering Lock Emulator Simulator With Lock Sound No Programming Required

Need to check the car if has green plug

some type doesn't work , try this emulator with another cars

C-hrysler J-eep D-odge Lancia ESL Electronic Steering Lock Emulator Specs:

Condition: New
Compatible Part Number: 5026132AC / 5026464AA / 5057278AC

C-hrysler J-eep D-odge Lancia ESL Electronic Steering Lock Emulator Overview:

J-EEP Electronic Steering Lock Problem Is One Among The Foremost Frequent Problems In J-EEP Starting System, J-EEP Dealer Need To Order New Steering Lock And Program It Which Is Just Too Much Costly And Required While Of Waiting.

• ELV Is A Self-occurring Mechanical Failure In The Steering Column Lock.

• The Occurrence Of The Fault Does Not Depend On Any Fault.

• In Case Of Malfunction, Even If There Is No Problem In The Vehicle Key, The Working Key Will Not Start The Vehicle Because The ELV Steering Column Lock Will Not Be Activated.

• In This Case, A New ELV Steering Column Lock Must Be Installed In The Vehicle And Programmed Into The Vehicle.

• Steering Lock Problem Is One Among The Foremost Frequent Problems In C-hrysler J-eep D-odge Lancia Starting System, C-hrysler J-eep D-odge Lancia Dealer Need To Order New Steering Lock And Program It Which Is Just Too Much Costly And Required While Of Waiting.

• Electronic Steering Lock C-hrysler J-eep D-odge Lancia Emulator Will Fix Your Steering Lock Malfunction Error, And Therefore The C-hrysler J-eep D-odge Lancia Esl Elv Universal Steering Lock Emulator Will Bypass C-hrysler J-eep D-odge Lancia Elv always.No Require Coding, Simply Connect it , And It'll Fix Your C-hrysler J-eep D-odge Lancia Esl Fail

for C-hrysler J-eep D-odge Lancia ESL Electronic Steering Lock Emulator LED behavior:

• After Connecting To The Car, Or To The Testing Cables, Insert The Car Key To The Switch

• If Emulator Light Turn Green That Mean It's Connected Well And Therefore The Car Is Prepared To Start Out

• If Emulator Light Turn Red That Mean The Key Doesn’t Belong To An Equivalent Eis / Ezs Otherwise You Have Eis Problem

• If Emulator Light Didn’t Turn No You Want To Check The Facility Supply Of The Car / Cables

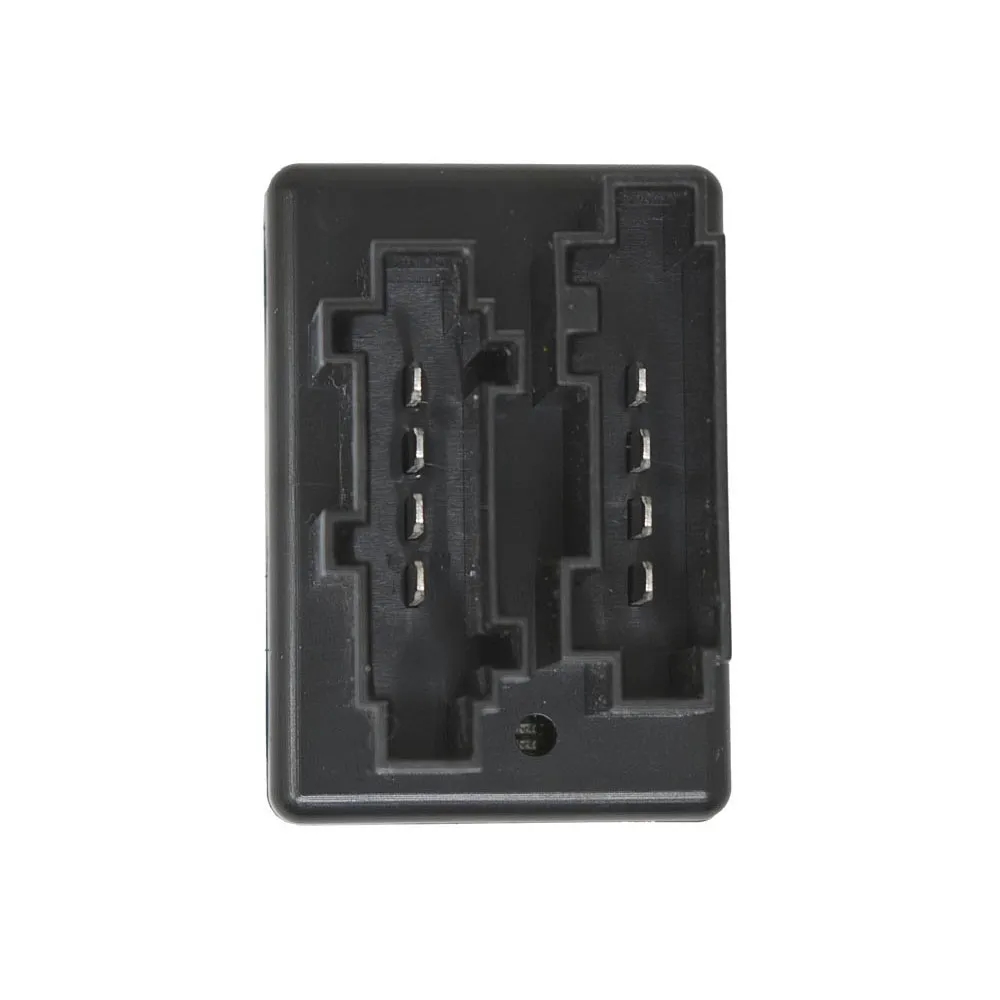

C-hrysler J-eep D-odge Lancia ESL Electronic Steering Lock Emulator Pinout:

• Pin1: +12v

• Pin2: GND

• Pin3: not used

• Pin4: LIN line

C-hrysler J-eep D-odge Lancia ESL Electronic Steering Lock Emulator Installation:

• How To Use or Fix Esl Steering Lock Emulator ?

• Unplug The Elv Wire From The First Car Steering Lock Unit.

• If Vehicle Steering Lock Is In Lock Mode, Steering Lock Must Be Faraway From The Car

• Connect Our Elv Emulator To The Car And Begin The Car.

Fitments:

• for C-hrysler

• for F-iat

• for J-eep Cherokee Ram

• for D-odge
